How To Measure and Install Single Hung Window Screens

Typical Single Hung Half Window Screen

Single Hung Window Insect Screens normally covers only the bottom half of the window.

Measuring the Window Screen "Height"

Top Window Screen Channel

First check for a U-Shaped Channel at the Top (Under the window center bar).

You should find a U-Channel that may be 3/8" to 1/2" deep.

This is where the top of the screen with Leaf or Tension Springs will slip up into.

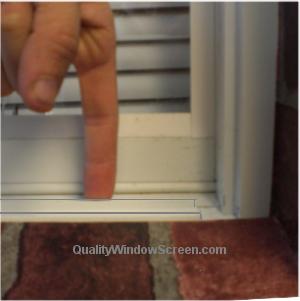

Bottom Window Screen LipNow Check for a Lip at the bottom of the window straight below the top U-Channel.

Note that this particular window has 2 lips on bottom, so find the right one if yours has 2.

You should find the Lip may be only 1/16"" to 3/16" deep (Not as deep as the top).

This is what the bottom of the screen will slip behind to hold it in place.


Measuring Window Screen HeightPut the end of a metal measuring tape all the way into the Top U-Channel and hold it as straight down as possible.

IMPORTANT: The hook on the metal tape must be small enough to go all the way into the top U-Channel.


Measure Top Insect Screen ChannelMeasure Bottom Window Screen Lip
  1. Make sure the measuring tape is all the way up into into the Top U-Channel.
  2. You should measure to 1/16"-1/8" Above of the Top Edge of the Bottom Lip.
  3. Provide measurements to the nearest 1/16".
  4. This measurement is your window screen 'Height'.

IMPORTANT: The concept is that when you insert the insect screen up in the deep Top
U-Channel, it has to be short enough to clear the top edge of the Bottom Lip, then the springs push the screen down into place behind the lip.

Measuring the Window Screen "Width"

Measure Single Hung Window Screen Width

Put the end of a metal measuring tape from left to right and hold it as straight as possible.

IMPORTANT: The left and right should just be a L-Shape or Flat areas. You cannot insert a window screen into U-Shaped Channels on more than two opposing sides.

Left Window Screen TrackRight Window Screen Track
  1. Place measuring tape top left side of window screen opening.
  2. Measure to the right side and Subtract about 1/16".
  3. Do not measure the tolerance too tight to allow easy insertion and removal.
  4. Provide measurements to the nearest 1/16".
  5. This measurement is your window screen 'Width'.

Your Window Screen "Hardware"

How to Order Window Screen Hardware

The typical Hardware used on these type of window screens are:

Leaf Springs or Tension Springs on Top; Lift Tabs on Bottom.

These Hardware Options are found on our Custom Window Screens order Pages:

Order Horizontal Slider Window Screens


Installing your Single Hung Type Window Screen

Install or Remove Fiberglass Window Screens

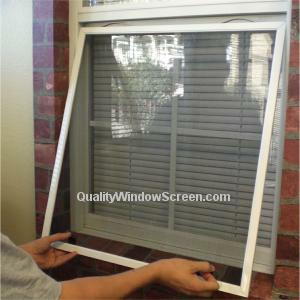

First, insert the top of the window screen with the springs into the deep channel enough to compress the springs.


How to Install Single Hung Fiberglass Insect ScreenThen slip the bottom of the screen behind the bottom lip. The springs should push the screen down to hold it in place.
