Recessed Jamb Mount - Roll-Away® Double French Door

Roll-Away® Double Door Recessed Jamb Mount Measuring Guide

Roll-Away® Retractable Door Screens mounted "inside" the Door Jamb Recess.
Determine which door you would like to be locked stationary as viewed from outside.
Minimum of 1 7/8" recess on the door jamb is required to attach the screen housing.
See the Detail Drawings below for required dimensions.

Measuring "Width" for Roll-Away Double Door

Measure Roll-Away Double French Door Screen Recessed Jamb Mount Width

Shown is the detailed dimensions of the Double Roller Housings. Use these dimensions to determine your RollAway Single Door Width.

Measuring "Height" for Roll-Away Double Door

Measure Roll-Away Screen Door Recessed Jamb Mount Height

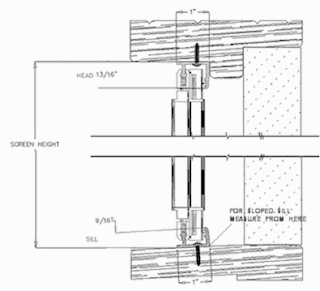

Shown is the detailed dimensions of the Top and Bottom Tracks. Use these dimensions to determine your RollAway Double Door Height.
